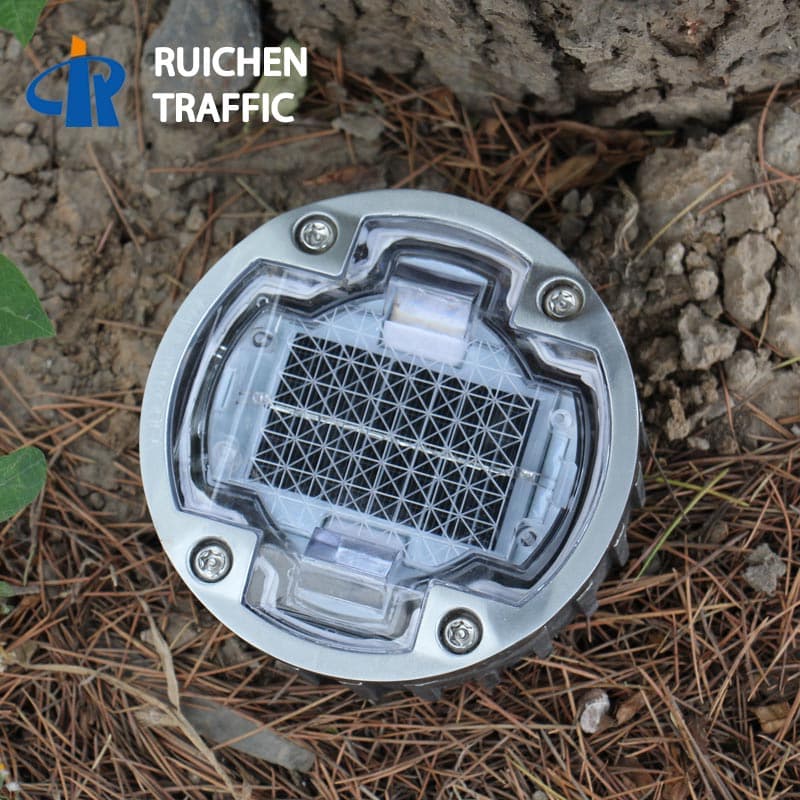

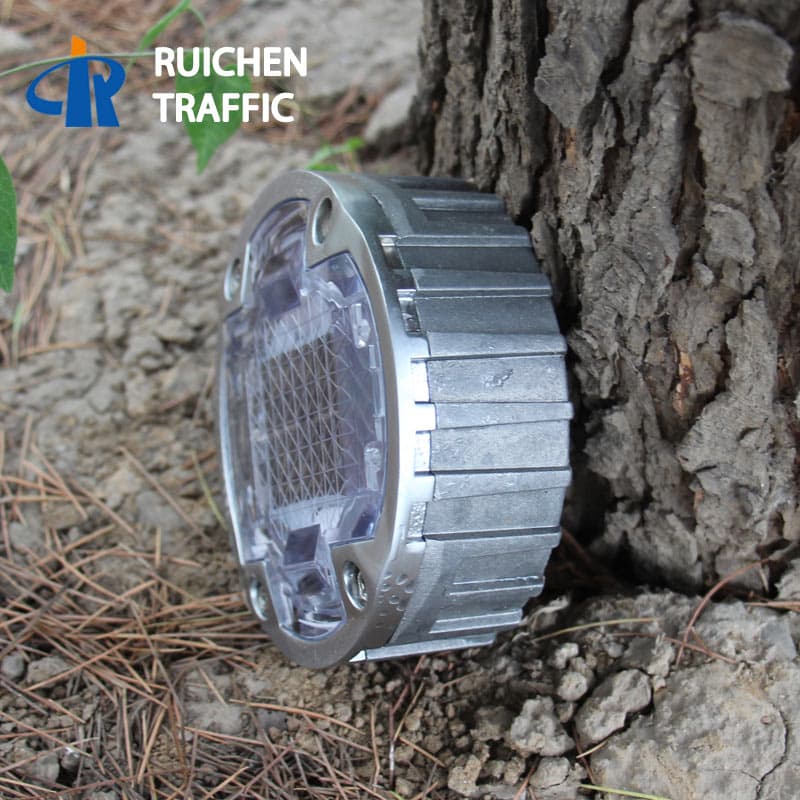

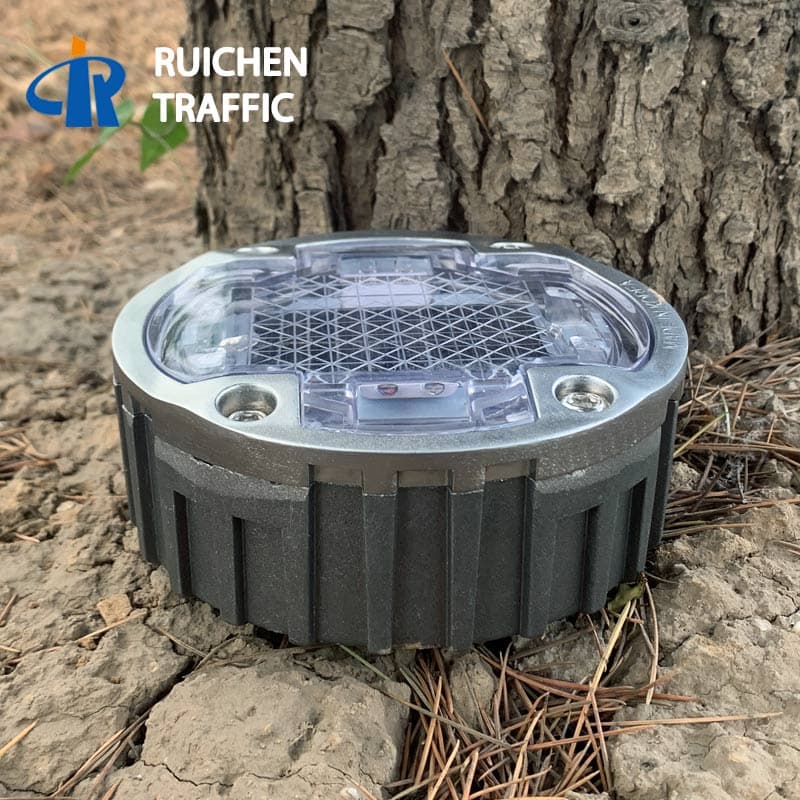

Aluminum Road Stud Light Pavement Marker C3

Load Bearing: >30T(static)
Warranty: 12 Months
Body material: Heavy-duty casting aluminum
Battery: Lithium battery 1000mA
Visual distance: > 800m
Working Mode: Flashing or Constant
Waterproof: IP68


Aluminum Road Stud Light Features:

•Up to 800 meters of visibility.

•Reliable all night, all-year-round performance.

•Totally sustainable harnessing free solar energy.

•Used where street lighting is either unavailable, solar stud not cost-effective, or environmentally impossible.

•Cost-effective, LED Road Stud Lights are easy to install and require absolutely no wires or maintenance.

•Solar-powered Road Stud Lights self-contained surface mounted.

•Road Stud Lights for road accept OEM/ODM


Aluminum Road Stud Light Pavement Marker C3 color
Five colors for choice: White, Amber, Red, Blue, Green


Aluminum Road Stud Light Pavement Marker Parameters:


    Material:     Aluminium+ PC
    Power supply:     Solar panel(monocrystalline 2.5V/0.3W)
    Battery:     Lithium battery 1000mA
    Working model:     Blinking or Constant
Charging at daytime and working automatically at night
    Life span:     5 years for lithium battery;
    LED colors:     Yellow, White, Red, Green, Blue
    Resistance:     >30T(static)
    Size:     φ123*45mm  (φ4.84″*1.77″)
    Visual distance:     >800M
    Water poof:     IP68
    Carton Size:     1pcs/box; 30pcs/ctn; Weight: 30kgs; Carton size: 67.5*28*20cm
(1pcs/box; 30pcs/ctn; Weight: 66.14bs; Carton size: 26.57″*11.02″*7.87″)


Aluminum Road Stud Light Pavement Marker C3
Aluminum Road Stud Light Pavement Marker C3


Application of Aluminum LED Road Stud Lights C3:

♥Schools and hospitals


♥High traffic areas

♥Walking paths

♥Transit stations

♥Parks and campuses

♥Urban Road


How to install Road Stud Light Pavement Marker C3:


1.Carefully mark the distance between the placement of Road Stud Lights. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill 125mm and depth will be 45mm.

2.Remove all debris from the installation hole.

3.Pour epoxy into the holes per the manufacturer’s instruction.

4.Verity that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the Road Stud Light shaft.

5.Set the lighting surface of the Road Stud Light to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and Road Stud Light shaft.

After curing the LED Road Stud Light for 6-8 hours, remove the installation of the isolation facility.
